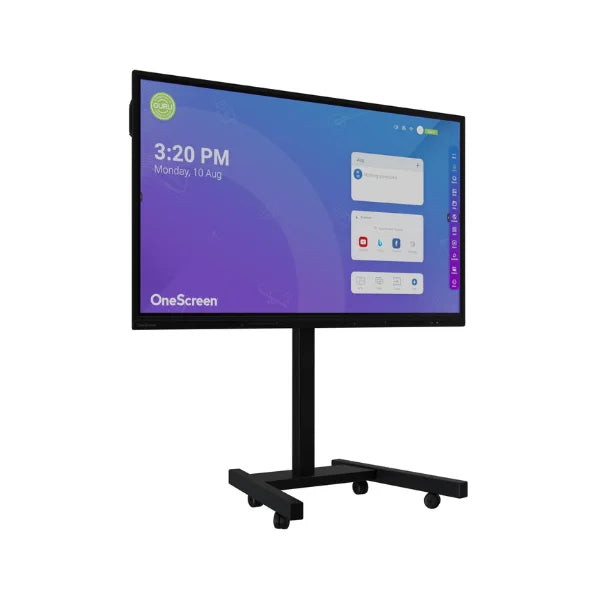

The OneScreen TL7 86 inch 4k Interactive Touchscreen Display is designed to transform collaborative environments in classrooms, boardrooms, and training spaces. This advanced interactive display features a stunning 4K UHD resolution on an expansive 86-inch screen, delivering crystal-clear visuals with vibrant color accuracy. With cutting-edge touchscreen technology, users enjoy seamless multi-touch capability, making presentations and group activities more engaging and productive. The OneScreen TL7 supports wireless connectivity, interactive whiteboarding, and a user-friendly interface, simplifying access for educators and professionals alike. Engineered for both versatility and durability, this 86 inch display is ideal for digital classrooms, modern workplaces, and collaborative learning. With built-in annotation tools and compatibility with popular software platforms, the OneScreen TL7 interactive touchscreen equips every team with the resources needed for dynamic presentations and real-time collaboration. Experience superior performance, effortless integration, and exceptional value with the OneScreen TL7 4K touchscreen.
Key Features
Ultra-Large 86" Display - Provides a spacious canvas for presentations and group collaboration.
4K UHD Resolution - Delivers breathtaking clarity and vivid color for detailed visuals.
Multi-Touch Capability - Supports up to 20 simultaneous touch points for interactive use.
Integrated Whiteboard Tools - Enhances brainstorming and annotation during meetings.
Wireless Connectivity - Easily cast devices for hassle-free sharing and presentations.
Durable Tempered Glass - Protects the touchscreen from scratches and impacts.
Easy Device Integration - Compatible with Windows, Mac, Chrome, and Android systems.
Built-In Speakers - Delivers rich audio for multimedia content and video conferences.
Energy Efficient Design - Minimizes power consumption during extended use.
Slim Bezel Aesthetics - Offers a modern, professional appearance for any space.
User-Friendly Interface - Simplifies navigation and operation for all users.
The OneScreen TL7 86 inch 4k Interactive Touchscreen Display redefines the standard for collaborative technology with its brilliant 4K interactive display, robust multi-touch capability, and seamless wireless connectivity. Ideal for educational institutions and professional settings, this interactive touchscreen display ensures every presentation, lesson, or meeting is dynamic and impactful.
| Name | OneScreen TL7 86 inch 4k Interactive Touchscreen Display |
| Refresh Rate | 60 Hz |
| Screen Size | 86 inch |
| Built-in Camera | Modular |
| Warranty | 3 Years |
| Sensors | Ambient Light Sensor |
| Accessories | Remote control, 2 × Stylus pens with anti-bacterial coating, Wall mount |
| Included Cables | HDMI Cable, Power cable, USB Touch Cable, Type C Cable |
| Wall Mount | 800 × 600 mm (VESA) |
| Power Consumption | 350 W |
| Shipping Dimensions | 2111 × 1284 × 225 mm |
| Product Dimensions | 1957 × 1160 × 100 mm |
| Product Weight | 58.54 ± 0.23 kg |
| Operating Humidity | 10%~90% RH |
| Operating Temperature | 0 °C to 40 °C |
| Wake-on-LAN | Yes |
| Blue-Light Filter | Yes |
| Ambient Light Sensor | Yes |
| RAM | 8 GB |
| Storage | 64 GB |
| CPU | Quad-core ARM Cortex A55 (up to 1.8 GHz) |
| OS Version | Android 11 |
| Touch Points | 40 Points Multi Touch |
| Touch Technology | Second Generation Zero Bonding |
| Touch Response Time | < 7 ms |
| Touch Accuracy | ±1.5 mm |
| Touch Resolution | 32768 × 32768 |
| Surface Protection | Anti-Glare Smooth Glass |
| Ethernet (RJ45) | RJ45 (1000 Mbps Port) × 2 |
| Wi-Fi | Wi-Fi 6, 2.4G/5G |
| Bluetooth | Bluetooth 5.2 |
| Serial Port | RS232 × 1 |
| OPS PC Slot | Optional |
| USB Ports | USB 3.0 × 4, USB 2.0 × 1 |
| Touch USB Ports | Touch-USB × 2 |
| Audio Out | Audio Out × 1 |
| Audio In | Audio In × 1 |
| Type C Functionality | 65W Charging |
| Type C in | Type-C × 1 (Front × 1) |
| DP 1.2 | DP 1.2 × 1 |
| VGAInput | VGA × 1 |
| Hdmi Output | HDMI Out × 1 |
| Hdmi Input | HDMI In × 3 |
| Speaker Output | 16 W × 2 |
| Speaker Type | Built-in Speakers |
| Brightness | 400 cd/m² |
| Display Color | 10bit |
| Resolution | 3840 × 2160 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | LED |
