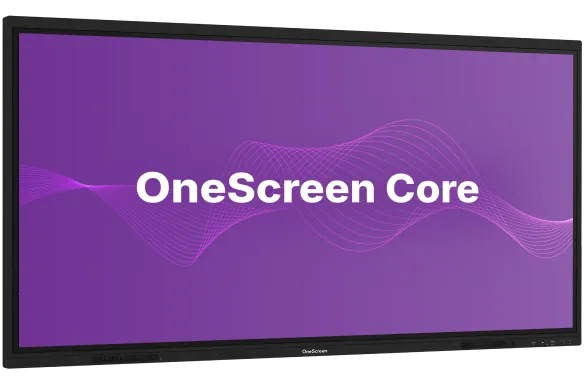

Experience next-level collaboration with the OneScreen Core 86 Inch 4k Interactive Touchscreen Display, engineered for immersive meetings and seamless presentations. Boasting a vibrant 4K UHD display and advanced AI features, this interactive panel enhances productivity in classrooms, boardrooms, and conference centers. Effortlessly communicate in diverse environments with live language translation and intuitive multi-touch technology, while the EDLA certification ensures optimal compatibility with leading educational and business applications. With responsive touchscreen functionality, presenters can annotate, write, and interact in real time. The integrated wireless connectivity simplifies device sharing, making it simple to cast content from laptops, tablets, or smartphones. Future-proof your workspace with the OneScreen Core—a robust, all-in-one solution designed for dynamic teamwork, remote learning, and digital collaboration. Bring crystal-clear visuals, lightning-fast interface, and secure screen sharing to your organization, empowering users to achieve more in every meeting.
Key Features
Ultra-Large 86-Inch Display - Expansive screen size provides stunning visuals perfect for large spaces.
4K UHD Resolution - Delivers razor-sharp, vibrant images and crystal-clear text for superior viewing.
Interactive Multi-Touch Technology - Supports multiple users with responsive, lag-free touch input.
Built-in AI Features - Smart AI enhances presentations, automates tasks, and boosts productivity.
Live Language Translation - Instantly translates spoken and written content for global collaboration.
EDLA Certified - Ensures compatibility with top educational and business software ecosystems.
Wireless Connectivity - Easily connect and share content from any device, no cables required.
Intuitive Annotation Tools - Write, draw, and highlight directly on the screen for engaging presentations.
Remote Collaboration Support - Optimized for video conferencing and hybrid meeting environments.
Durable Construction - Built for daily use with robust materials and reliable performance.
Easy Setup & Integration - Simple installation and seamless integration with existing AV systems.
Upgrade your communication and presentation capabilities with the OneScreen Core 86 Inch 4k Interactive Touchscreen Display. This all-in-one interactive display combines AI-powered features, live language translation, and industry-leading touchscreen display technology for a premium user experience in any professional or educational setting.
| Name | OneScreen Core 86 Inch 4k Interactive Touchscreen Display with Built-in AI Features & Live Language Translation - EDLA |
| Refresh Rate | 60 Hz |
| Screen Size | 86 inch |
| Built-in Camera | Modular |
| Warranty | 3 Years |
| NFC Card Reader | Optional |
| Sensors | Ambient Light Sensor |
| Accessories | 2 × Stylus pens, 1 × Magnetic Eraser, 1 × Remote control, Wall mount |
| Included Cables | HDMI cable × 1, Power cable × 1, USB touch cable × 1 |
| Wall Mount | 800 × 600 mm (VESA) |
| Power Consumption | < 230 W |
| Power Standby | ≤ 0.5 W |
| Shipping Dimensions | 2111 × 1283 × 226 mm |
| Product Dimensions | 1956 × 1161 × 96 mm |
| Product Weight | 50.93 kg |
| Operating Humidity | 10%~90% RH |
| Operating Temperature | 0 °C to 40 °C |
| Wake-on-LAN | Yes |
| Blue-Light Filter | Yes |
| Ambient Light Sensor | Yes |
| Voice Commands | Yes |
| RAM | 8 GB |
| Storage | 128 GB |
| NPU | 6 TOPS |
| GPU | Mali G52MP8 |
| CPU | Octa-core processor (4 × A53 + 4 × A73) |
| OS Version | Android 14 |
| Touch Points | 50 Points Multi Touch |
| Touch Technology | Second Generation Zero Bonding |
| Pen and Touch Differentiation | Yes |
| Touch Response Time | ≤ 2.5 ms |
| Palm Rejection | Yes |
| Touch Accuracy | ±1 mm |
| Touch Resolution | 32768 × 32768 |
| Surface Protection | Anti-Glare Smooth Glass |
| Ethernet (RJ45) | RJ45 (1000 Mbps Port) × 2 |
| Wi-Fi | Wi-Fi 6E, 2.4G/5G/6G |
| Bluetooth | Bluetooth 5.3 |
| Serial Port | RS232 × 1 |
| SD Card Slot | 1 |
| OPS PC Slot | Optional |
| USB Ports | USB 3.0 × 4, USB 2.0 × 1 |
| Touch USB Ports | Touch-USB 2.0 × 1; Touch-USB 3.0 × 1 |
| Audio Out | Audio Out × 1 |
| Audio In | Audio In × 1 |
| Type C Functionality | Full feature type C with USB, Video, Audio, Network and touch support, 65W Charging |
| Type C in | Type-C × 2 (Front × 1; Rear × 1) |
| DP 1.2 | DP 1.2 × 1 |
| VGAInput | VGA × 1 |
| Hdmi Output | HDMI Out × 1 |
| Hdmi Input | HDMI In × 3 |
| Speaker Output | 2 × 20W |
| Speaker Type | Built-in Speakers |
| Brightness | 400 cd/m² |
| Display Color | 10bit |
| Resolution | 3840 × 2160 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | LED |
No datasheet available.
