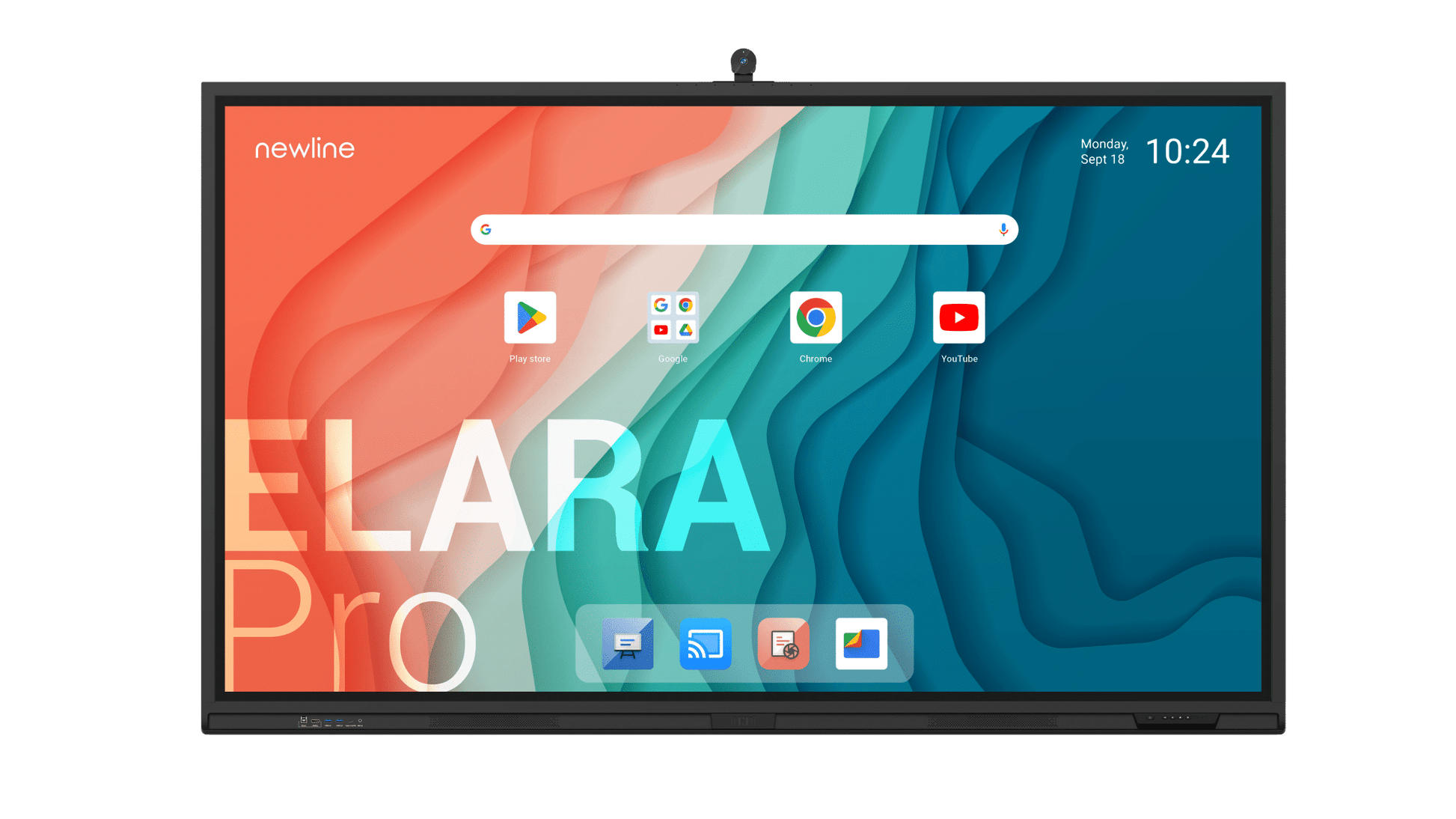

The Newline 86" Elara Pro Interactive Display is an advanced touchscreen solution designed for collaborative meeting rooms, classrooms, and business environments. Featuring an expansive 86-inch ultra-high-definition screen, the Elara Pro delivers vibrant, crystal-clear visuals and ultra-responsive multi-touch capabilities. With its integrated Android operating system, seamless wireless connectivity, and robust interactive whiteboard features, this display transforms presentations and teamwork. The anti-glare, flicker-free panel ensures comfortable viewing even in brightly lit spaces. The Newline Elara Pro supports a wide range of collaboration tools and is compatible with leading conferencing platforms, making it an ideal centerpiece for digital learning and productive meetings. Enhance your workspace experience with intuitive controls, secure network options, and a premium design that elevates any professional setting. Enjoy smooth writing, detailed annotations, and effortless content sharing. Upgrade your organization with the smart, versatile interactive display that adapts to your needs and inspires engagement every day.
Key Features
Ultra-Large 86" 4K UHD Screen - Offers stunning, immersive visuals with superior clarity and detail for presentations and media.
Advanced Multi-Touch Technology - Supports multiple users simultaneously for dynamic collaboration and interactive sessions.
Integrated Android OS - Enables seamless app access, intuitive navigation, and a familiar user experience.
Wireless Device Connectivity - Easily connect laptops, tablets, and smartphones for quick content sharing and screen mirroring.
Interactive Whiteboard Tools - Includes smart annotation, drawing, and note-taking features for engaging teamwork.
Anti-Glare, Flicker-Free Panel - Provides comfortable, strain-free viewing in various lighting conditions.
Built-In Speakers & Microphone Array - Delivers clear audio for video conferences and multimedia playback.
Secure Network Options - Ensures data protection and safe connections for business and education environments.
Robust Conferencing Compatibility - Works seamlessly with popular video meeting platforms like Zoom and Teams.
Durable, Premium Design - Constructed with high-quality materials for reliability and modern aesthetics.
Easy Wall Mounting & Installation - Simplifies setup in any classroom, boardroom, or collaboration space.
The Newline 86" Elara Pro Interactive Display is the ultimate collaboration tool for forward-thinking organizations. With an intuitive interface, powerful hardware, and versatile interactive technology, it streamlines meetings, learning, and creative projects. Elevate your communication and productivity with this innovative solution built for today’s digital world.
| Name | Newline 86" Elara Pro Interactive Display |
| Screen Size | 86 inch |
| Built-in Camera | Included (ModCam+) |
| NFC Card Reader | Yes |
| Wall Mount | 800 × 400 mm (VESA) |
| Power Consumption | 150 W |
| Power Standby | < 0.5 W |
| Product Dimensions | 1982 × 1191 × 119 mm |
| Product Weight | 65 kg |
| Blue-Light Filter | Yes |
| RAM | 16 GB |
| Storage | 320 GB |
| NPU | 6 Tops |
| GPU | Mali Odin G610 MC4 |
| CPU | Rockchip RK3588 octa-core processor, 4× Cortex-A76 at 2.4GHz, 4× Cortex-A55 cores at 1.8 GHz |
| OS Version | Android 13 |
| Touch Points | 50 Points Multi Touch |
| Touch Technology | Stellar Touch Technology |
| Touch Response Time | < 5 ms |
| Palm Rejection | Yes |
| Touch Accuracy | ± 1 mm |
| Surface Protection | Anti-Glare+Anti-Fingerprint, + Antimicrobial Tempered Glass |
| Ethernet (RJ45) | Gigabit LAN (RJ45) × 2 |
| Wi-Fi | Wi-Fi 6 |
| Bluetooth | Bluetooth 5.2 |
| Serial Port | RS232 × 1 |
| USB Ports | USB 3.2 Type-A × 4, USB 3.0 Type-C × 1 |
| Touch USB Ports | USB 3.2 Type-B (Touch) × 4 |
| Audio Out | Audio Line Out × 1 |
| Audio In | Microphone In × 1 |
| Type C Functionality | Supports USB 2.0, 100W Charging, DP IN 1.2 |
| Type C in | USB Type-C (Powered 100 W) × 1 |
| DP 1.2 | Display Port 1.2 Input x 1 |
| Hdmi Output | HDMI Out 2.0 × 1 |
| Hdmi Input | HDMI In 2.1 × 2 |
| Speaker Output | 20 W × 2 + 20 W × 1 |
| Speaker Type | Built-in Speakers |
| Brightness | 450 cd/m² |
| Display Color | 10bit |
| Resolution | 3840 × 2160 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | Direct LED |
