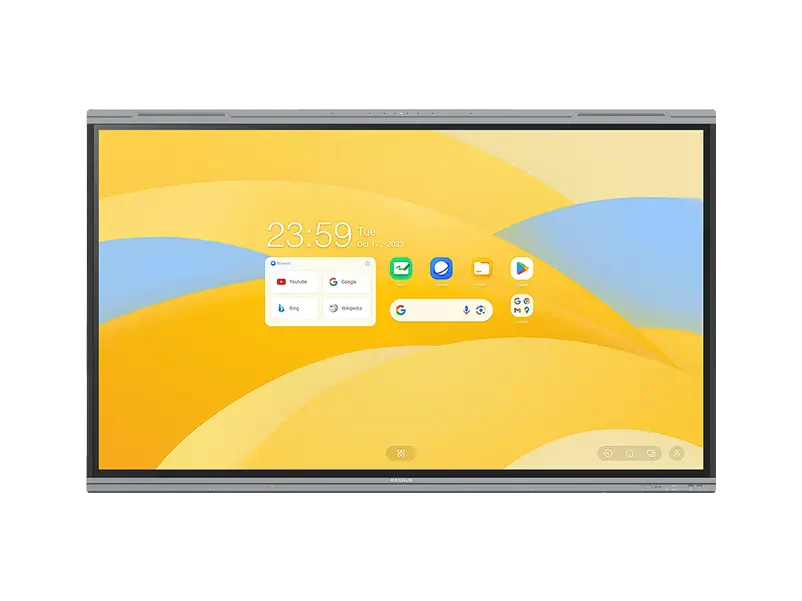

The MAXHUB 86 inch Interactive Flat Panel U3 Series Interactive Display (Model U7530) is the ultimate solution for modern classrooms and collaborative meeting spaces. This advanced interactive display features an impressive 86-inch 4K UHD touchscreen, delivering crystal-clear visuals and smooth touch responsiveness for seamless presentations and brainstorming sessions. With cutting-edge wireless screen sharing, built-in Android OS, and lightning-fast multi-touch technology, the MAXHUB U7530 transforms any environment into a dynamic hub for creativity and productivity. Enhanced with robust anti-glare glass and superior audio integration, it ensures every participant enjoys an immersive experience. Its versatile connectivity, user-friendly interface, and remote collaboration tools make it a top choice for forward-thinking organizations. Designed for durability and continuous use, the U3 Series empowers educators and professionals to maximize engagement, drive innovation, and streamline communication. Upgrade your workspace with this powerful interactive flat panel and discover the future of interactive technology.
Key Features
Ultra-Large 86-Inch 4K Display - Provides expansive, ultra-high-definition visuals for engaging presentations and meetings.
Multi-Touch Technology - Supports up to 20-point touch for collaborative work and interactive lessons.
Wireless Screen Sharing - Instantly mirror devices without cables for efficient content sharing.
Built-In Android OS - Access apps and tools directly without the need for external devices.
Integrated Audio System - Delivers clear, immersive sound for enhanced communication.
Anti-Glare Tempered Glass - Ensures comfortable viewing in all lighting conditions.
Comprehensive Connectivity - Features HDMI, USB, and LAN ports for seamless integration with other devices.
Remote Collaboration Tools - Supports video conferencing and real-time annotation for productive teamwork.
User-Friendly Interface - Simple navigation and intuitive controls for effortless operation.
Durable Construction - Built to withstand heavy use in educational and business environments.
Eco-Friendly Design - Energy-efficient performance for sustainable operation.
The MAXHUB U7530 Interactive Flat Panel redefines collaboration and presentation technology for classrooms, boardrooms, and training centers. With its advanced interactive features, robust design, and seamless wireless connectivity, this 86-inch display delivers exceptional performance and flexibility for dynamic learning and business environments.
| Name | MAXHUB 86 inch Interactive Flat Panel U3 Series Interactive Display – Model U7530 |
| Refresh Rate | 60 Hz |
| Screen Size | 86 inch |
| Built-in Camera | UC W31 (Optional) |
| Sensors | Ambient light sensor, Ambient color temperature sensor |
| Accessories | Remote Control × 1, Stylus × 2, Wall Mount WIB9060G |
| Included Cables | Power Cord 3m × 1, HDMI Cable 3m × 1, USB Touch Cable (Type A-B) 3m × 1 |
| Wall Mount | 800 × 400 mm (VESA) |
| Power Consumption | 375W |
| Power Standby | 0.5W |
| Shipping Dimensions | 2110 × 1291 × 225 mm |
| Product Dimensions | 1957 × 1171 × 86 mm |
| Product Weight | 63.55kg |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0 °C - 40 °C |
| Blue-Light Filter | Yes |
| Ambient Light Sensor | Yes |
| RAM | 8 GB |
| Storage | 64 GB |
| NPU | 6 TOPS |
| GPU | Mali-G610 MP4 |
| CPU | A76 × 4 + A55 × 4 Octa-core |
| OS Version | Android 13 |
| Touch Points | 50 Points Multi Touch |
| Touch Technology | Intelligent Touchscreen Technology (infrared recognition) |
| Touch Response Time | 2.5 ms |
| Touch Accuracy | ± 0.5 mm |
| Surface Protection | Non-glare Technology |
| Ethernet (RJ45) | RJ45 IN × 1, RJ45 OUT × 1 |
| Wi-Fi | Wi-Fi 6, 2.4GHz/5GHz |
| Bluetooth | Bluetooth 5.2 |
| Serial Port | RS232 × 1 |
| OPS PC Slot | Optional |
| USB Ports | USB 2.0 × 1, USB 3.0 × 4 |
| Touch USB Ports | TOUCH OUT × 2 |
| Audio Out | AUDIO OUT × 1 |
| Audio In | AUDIO IN × 1 |
| Type C Functionality | Video, Audio, Touch, Charge, LAN Network Sharing Front: Up to 100W PD, Rear: Up to 15W PD |
| Type C in | USB Type-C × 2 |
| DP 1.2 | DisplayPort Input × 1 |
| Hdmi Output | HDMI OUT × 1 |
| Hdmi Input | HDMI IN × 4 |
| Speaker Output | 2 × 8W + 2 × 18W Outputs |
| Speaker Type | Built-in Speakers |
| Brightness | 500 nits |
| Display Color | 10bit |
| Resolution | 3840 × 2160 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | DLED |
