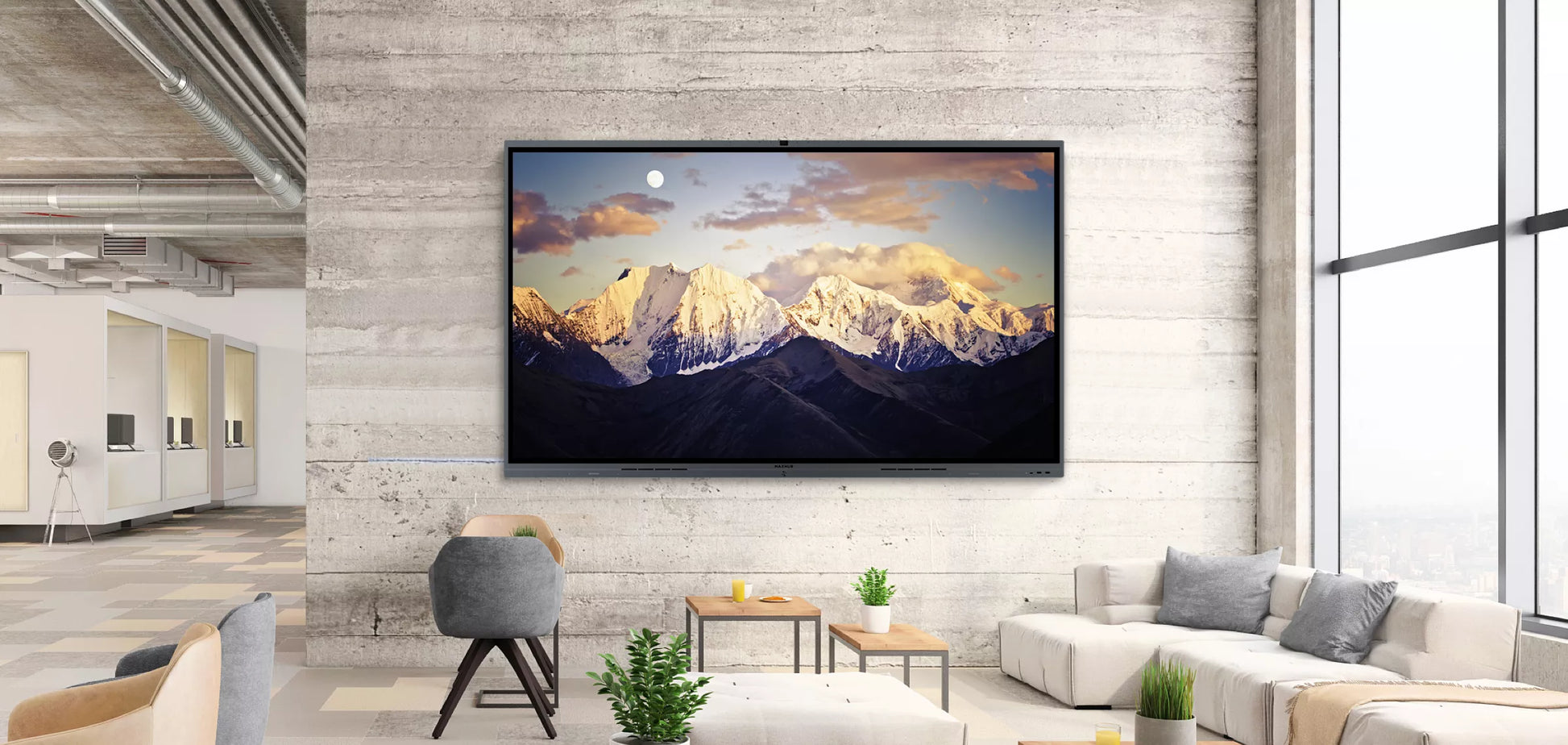

The MAXHUB 75 inch V6 Classic Series Interactive Display (Model C7530) redefines collaboration and presentation in modern business and education environments. With its expansive 75-inch 4K UHD touchscreen, this interactive display delivers astonishing clarity and vibrant color, making every meeting or lesson more engaging. The MAXHUB V6 Classic is engineered for seamless wireless screen sharing, intuitive multi-touch technology, and rapid response for brainstorming or interactive lessons. Built for versatility, it integrates smoothly with video conferencing systems, and its anti-glare display ensures comfortable viewing from any angle. The MAXHUB C7530 supports a host of productivity tools, from digital whiteboarding to annotation, catering to both corporate boardrooms and classrooms. Experience robust audio-visual performance and easy device connectivity, all backed by a durable, sleek design. With advanced security features and user-friendly interface, this display elevates presentations, enhances collaboration, and boosts productivity in any professional setting.
Key Features
75-Inch 4K UHD Display - Ultra-high-definition visuals for crisp, detailed presentations.
Multi-Touch Technology - Supports up to 20-point touch for dynamic collaboration.
Wireless Screen Sharing - Easily connect laptops, tablets, and smartphones without cables.
Integrated Whiteboard Tools - Annotate, draw, and brainstorm directly on the screen.
Anti-Glare Surface - Reduces reflections for clear visibility in any lighting.
Powerful Audio System - Built-in speakers provide immersive sound for meetings and classes.
Seamless Video Conferencing - Compatible with popular platforms for remote meetings.
Energy-Efficient Performance - Designed for low power consumption and long-lasting use.
Robust Security Features - Keep your data and presentations safe with enhanced security.
Multiple Connectivity Options - HDMI, USB, and wireless connections for all your devices.
Sleek, Durable Design - Modern aesthetics combined with sturdy construction for any environment.
The MAXHUB 75 inch V6 Classic Series Interactive Display (Model C7530) is the ultimate solution for businesses and educators seeking an advanced interactive display. Its superior visual clarity, versatile connectivity, and collaborative features make it an essential tool for engaging presentations and productive meetings.
| Name | MAXHUB 75 inch V6 Classic Series Interactive Display – Model C7530 |
| Refresh Rate | 60 Hz |
| Screen Size | 75 inch |
| Built-in Camera | 48 MP |
| Accessories | 2 × Passive Stylus, 1 × Wall Mount |
| Included Cables | Power Cord, 1 × Wifi Adapter, 1 × Type-C Cable (1.8m) |
| Wall Mount | 800 × 400 mm (VESA) |
| Power Consumption | 400 W |
| Power Standby | 0.5 W |
| Shipping Dimensions | 1863 × 1140 × 225 mm |
| Product Dimensions | 1709 × 1026 × 87 mm |
| Product Weight | 48.3 kg |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0 °C - 40 °C |
| Touch Points | 20 Points Multi Touch |
| Touch Technology | Infrared |
| Touch Accuracy | ± 1 mm |
| Surface Protection | Anti-glare |
| Wi-Fi | Wi-Fi Module: SI06 |
| Serial Port | RS232 × 1 |
| OPS PC Slot | Optional |
| USB Ports | USB 2.0 × 1, USB 3.0 × 2 |
| Touch USB Ports | TOUCH 2.0 × 1 |
| Audio Out | Audio Out × 1 |
| Type C in | USB Type-C × 2 |
| Hdmi Input | HDMI In × 1 |
| Speaker Output | 2 × 10W + 20W |
| Speaker Type | Built-in Speakers |
| Brightness | 350 cd/m² |
| Resolution | 3840 × 2160 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | Direct-lit LED VA |
No datasheet available.
