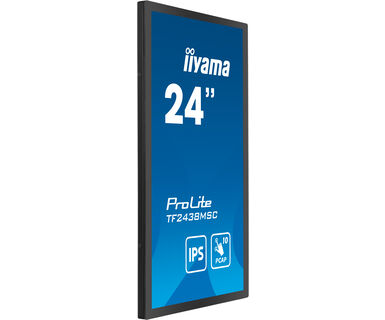

The Iiyama 23.8” 10pt Optical Bonded PCAP Open Frame Touch monitor (SKU: TF2438MSC-B1) is expertly engineered for commercial and industrial environments requiring reliable touchscreen technology. Featuring advanced PCAP (Projected Capacitive) innovation, this open frame monitor delivers ultra-responsive multi-touch experience with support for up to 10 simultaneous touch points. Its IPS panel technology ensures vibrant colors and wide viewing angles, making it ideal for kiosks, interactive displays, and digital signage. The edge-to-edge glass design not only provides a sleek, modern look but also enhances durability and ease of cleaning, thanks to its anti-fingerprint coating. Built with a robust metal housing, this monitor is protected against impacts and is suitable for high-traffic public spaces. The model TF2438MSC-B1 combines performance, style, and strength, making it a top choice for businesses seeking reliable interactive displays that perform flawlessly in any setting.
Key Features
23.8-Inch Full HD Display - Crisp 1920x1080 resolution for clear, detailed visuals.
10-Point Multi-Touch - Supports seamless multi-user interaction and gestures.
Optical Bonded PCAP Technology - Delivers accurate, fast, and responsive touch input.
IPS Panel Technology - Provides vivid colors and wide 178° viewing angles.
Edge-to-Edge Glass Design - Sleek aesthetics with easy, hygienic maintenance.
Anti-Fingerprint Coating - Reduces smudges and keeps the screen pristine.
Durable Metal Housing - Industrial-grade construction for enhanced protection.
Open Frame Construction - Easy integration into kiosks, tables, and custom enclosures.
Versatile Mounting Options - Compatible with standard VESA mounts for flexible installation.
Energy Efficient - Low power consumption ideal for continuous operation.
Commercial-Grade Reliability - Designed for use in demanding public and professional spaces.
The Iiyama TF2438MSC-B1 offers a premium touch screen monitor solution with edge-to-edge glass, anti-fingerprint coating, and a sturdy metal housing. Its advanced IPS display and PCAP technology make it an exceptional choice for interactive kiosks, retail, and industrial applications, delivering reliable performance and long-lasting durability for any professional environment.
| Name | Iiyama 23.8” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing |
| Screen Size | 23.8 inch |
| Accessories | quick start guide, safety guide, cable cover |
| Included Cables | power, USB, HDMI |
| Wall Mount | 100 × 100 mm (VESA) |
| Power Consumption | 22 W |
| Power Standby | 1.5 W |
| Shipping Dimensions | 635 × 409 × 115 mm |
| Product Dimensions | 561.5 × 337 × 47.5 mm |
| Product Weight | 6.5 kg |
| Blue-Light Filter | Yes |
| Touch Points | 10 Points Multi Touch |
| Touch Technology | Bonded PCAP |
| USB Ports | USB 3.2 Gen 1 × 2 |
| DP 1.2 | DisplayPort Input × 1 |
| Hdmi Input | HDMI In × 1 |
| Speaker Output | 2 × 2W |
| Speaker Type | Built-in Speakers |
| Brightness | 525 cd/m² |
| Display Color | 8bit |
| Resolution | 1920 × 1080 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | IPS |
No datasheet available.
