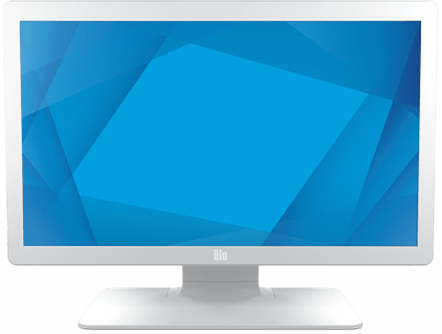

Experience advanced healthcare technology with the ELO Touch 24" Medical Grade Touchscreen Monitor – Model 2403LM (SKU: E659195). Designed for modern medical environments, this medical touchscreen monitor delivers exceptional clarity, reliability, and hygiene. The 24-inch full HD display ensures accurate image reproduction, supporting detailed viewing of patient information and diagnostics. With multi-touch capability and a durable, easy-to-clean surface, this monitor is ideal for busy clinical settings. The ELO 2403LM is compliant with stringent medical safety certifications, making it perfect for hospitals, clinics, and laboratories. Its antimicrobial coating and IP54-rated front protect against dust and liquid ingress, ensuring longevity and patient safety. The wide viewing angles and flexible installation options provide seamless integration into medical carts, wall mounts, or desks. Optimize your workspace with the ELO medical monitor known for its fast, accurate touch response and robust build. Enhance efficiency and patient care with a monitor designed to meet the demanding standards of healthcare professionals.
Key Features
24-Inch Full HD Display - Offers crystal-clear visuals for accurate diagnosis and patient monitoring.
Multi-Touch Capability - Supports multiple touch points for intuitive and efficient operation.
Medical Grade Certification - Meets rigorous safety and performance standards for healthcare environments.
Antimicrobial Surface - Reduces the risk of bacteria and germs, enhancing patient and staff safety.
IP54-Rated Front - Protects against dust and liquid spills, ensuring longevity in demanding settings.
Flexible Mounting Options - Compatible with VESA mounts for carts, walls, or desks.
Edge-to-Edge Glass - Enables easy cleaning and a modern, seamless look.
Wide Viewing Angles - Ensures consistent image quality from any direction.
Fast, Accurate Touch Response - Increases workflow efficiency in critical medical applications.
Energy Efficient - Designed for low power consumption, supporting eco-friendly operations.
Durable Construction - Built to withstand daily use in busy healthcare environments.
The ELO Touch 24" Medical Grade Touchscreen Monitor Model 2403LM (SKU: E659195) sets the standard for medical monitors with its advanced features and robust construction. Designed to meet the needs of healthcare professionals, this monitor enhances clinical workflow with reliable, hygienic, and high-performance technology. Trust ELO for your next medical display solution.
| Name | ELO Touch 24" Medical Grade Touchscreen Monitor – Model 2403LM (SKU: E659195) |
| Screen Size | 24 inch |
| Warranty | 3 years |
| Included Cables | VGA cable, HDMI cable, Touch USB cable, Audio cable, Power brick, NA Power cable, EU Power cable |
| Wall Mount | 100 × 100 mm (VESA) |
| Power Consumption | 17.33 W |
| Power Standby | 0.24 W |
| Shipping Dimensions | 680 × 526 × 318 mm |
| Product Dimensions | 574.6 × 432.9 × 233 mm |
| Product Weight | 9.80 kg |
| Operating Humidity | 20%~80% RH |
| Operating Temperature | 0 °C - 40 °C |
| Touch Points | 10 Points Multi Touch |
| Touch Technology | TouchPro PCAP |
| Surface Protection | Anti-glare |
| Serial Port | RS232 × 1 |
| USB Ports | USB 2.0 Type A × 1 |
| Touch USB Ports | Touch-USB × 1 |
| Audio In | Audio In × 1 |
| VGAInput | VGA × 1 |
| Hdmi Input | HDMI × 1 |
| Speaker Output | 2 × 2W |
| Speaker Type | Built-in Speakers |
| Brightness | 225 cd/m² |
| Display Color | 8bit |
| Resolution | 1920 × 1080 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | Active matrix TFT LCD |
No datasheet available.
