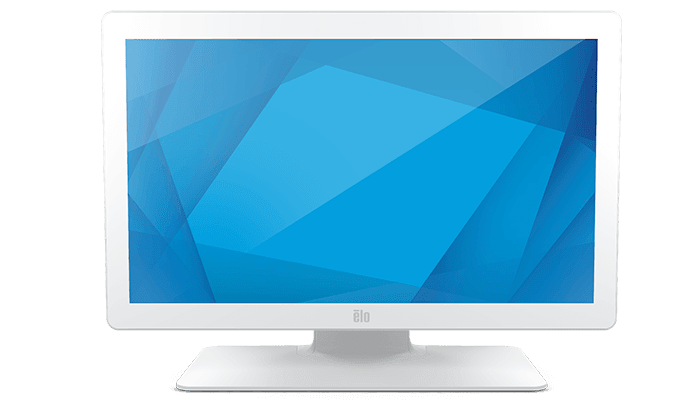

Experience cutting-edge technology with the ELO Touch 22" Medical Grade Touchscreen Monitor – Model 2203LM (SKU: E658992). Engineered for demanding healthcare environments, this medical touchscreen monitor ensures exceptional image clarity, reliable touchscreen performance, and advanced infection control standards. The 22-inch display offers full HD resolution, delivering crisp visuals for medical imaging and accurate data review. Designed with an antimicrobial enclosure, this monitor supports easy cleaning and disinfection, making it ideal for hospitals, clinics, and laboratories. The 2203LM touchscreen features multiple connectivity options and complies with IEC60601 medical safety standards, ensuring both versatility and safety. With intuitive multi-touch support and a durable construction, this monitor enhances workflow efficiency and patient care. Upgrade your facility with reliable medical display technology that prioritizes hygiene, performance, and user comfort.
Key Features
Medical Grade Certification - Complies with IEC60601 and other healthcare safety standards for clinical environments.
22-Inch Full HD Display - Provides 1920x1080 resolution for sharp, clear medical images and data.
Antimicrobial Enclosure - Resists bacteria and is easy to disinfect, meeting infection control protocols.
Multi-Touch Technology - Responsive 10-point touch for accurate and intuitive interaction.
Versatile Connectivity - Includes HDMI, DisplayPort, VGA, and USB for flexible integration with medical devices.
Glove-Friendly Operation - Designed for reliable touch response even when wearing medical gloves.
VESA Mount Compatible - Easily mounts to walls, arms, or carts for versatile placement in healthcare settings.
Energy Efficient - Low power consumption helps reduce operational costs and supports green initiatives.
Wide Viewing Angles - Delivers consistent image quality from multiple perspectives, ideal for collaborative care.
Durable Construction - Built to withstand rigorous use in busy medical environments.
Fanless Design - Silent operation minimizes noise and reduces airborne contaminants.
The ELO 2203LM medical touchscreen monitor (SKU: E658992) is a premium choice for healthcare facilities seeking a reliable and hygienic medical display solution. With its advanced touch technology, robust safety features, and easy-to-clean design, this monitor supports efficient workflows and enhances patient care in any clinical setting.
| Name | ELO Touch 22" Medical Grade Touchscreen Monitor – Model 2203LM (SKU: E658992) |
| Refresh Rate | 60 Hz |
| Screen Size | 22 inch |
| Warranty | 3 years |
| Included Cables | VGA cable, HDMI cable, Touch USB cable, Audio cable, NA Power cable, EU Power cable |
| Wall Mount | 100 × 100 mm (VESA) |
| Power Consumption | 16.78 W |
| Power Standby | 0.78 W |
| Shipping Dimensions | 617 × 477 × 260 mm |
| Product Dimensions | 526.9 × 383.8 × 193.4 mm |
| Product Weight | 6.75 kg |
| Operating Humidity | 20%~80% RH |
| Operating Temperature | 0 °C - 40 °C |
| Touch Points | 10 Points Multi Touch |
| Touch Technology | Projected Capacitive Touch |
| Surface Protection | Anti-glare |
| Serial Port | RS232 × 1 |
| USB Ports | USB 2.0 Type A × 1 |
| Touch USB Ports | Touch-USB × 1 |
| Audio In | Audio In × 1 |
| VGAInput | VGA × 1 |
| Hdmi Input | HDMI × 1 |
| Speaker Output | 2 × 2W |
| Speaker Type | Built-in Speakers |
| Brightness | 250 cd/m² |
| Display Color | 8bit |
| Resolution | 1920 × 1080 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | Active matrix TFT LCD |
No datasheet available.
