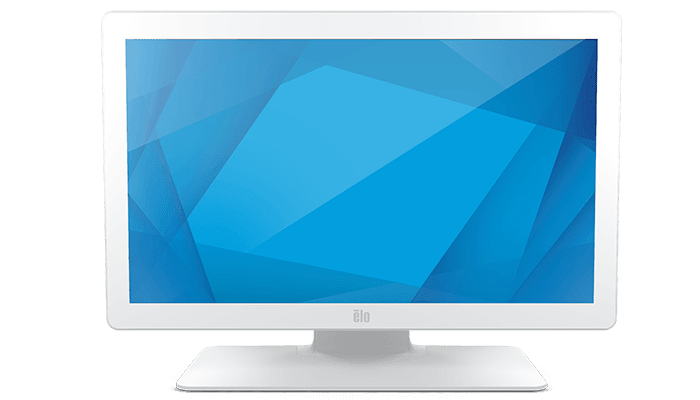

The ELO Touch 22" Medical Grade Touchscreen Monitor – Model 2203LM (SKU: E381048) is designed specifically for healthcare environments requiring advanced touchscreen technology. With its 22-inch display, this monitor delivers crystal-clear visuals and reliable performance for medical professionals. The antimicrobial enclosure ensures patient and staff safety, making it ideal for hospitals, clinics, and medical offices. The multi-touch capability provides seamless navigation, while the medical-grade certification guarantees compliance with industry standards. Designed for durability and ease of cleaning, this monitor supports round-the-clock operation in demanding healthcare settings. Experience exceptional image clarity and responsive touch, whether you’re accessing patient records or using diagnostic software. The ELO 2203LM monitor is the trusted choice for healthcare professionals seeking reliability, hygiene, and user-friendly operation in a medical display.
Key Features
22-Inch Full HD Display - Offers crisp, vibrant visuals for clear medical imaging and data viewing.
Antimicrobial Enclosure - Reduces the spread of bacteria, supporting infection control protocols.
Multi-Touch Technology - Supports intuitive gestures for quick data entry and navigation.
Medical Grade Certification - Meets key safety and performance standards for healthcare use.
Easy-to-Clean Surface - Designed for frequent sanitization without damage.
VESA Mount Compatibility - Allows flexible installation on walls, arms, or carts.
Wide Viewing Angles - Ensures visibility from different positions in clinical settings.
Energy Efficient - Designed for low power consumption during continuous operation.
Durable Construction - Built to withstand high-traffic and rigorous medical environments.
Flexible Connectivity Options - Includes HDMI, VGA, and USB ports for diverse device compatibility.
Glove-Friendly Touchscreen - Operates accurately even when users are wearing medical gloves.
The ELO Touch 22" Medical Grade Touchscreen Monitor (Model 2203LM, SKU: E381048) is tailored for healthcare professionals who demand reliable performance, hygienic design, and advanced touchscreen functionality. Perfect for hospitals, clinics, and laboratories, it combines medical safety standards with user-friendly features for seamless integration into any medical workflow.
| Name | ELO Touch 22" Medical Grade Touchscreen Monitor – Model 2203LM (SKU: E381048) |
| Refresh Rate | 60 Hz |
| Screen Size | 22 inch |
| Warranty | 3 years |
| Included Cables | VGA cable, HDMI cable, Touch USB cable, Audio cable, NA Power cable, EU Power cable |
| Wall Mount | 100 × 100 mm (VESA) |
| Power Consumption | < 16.78 W |
| Power Standby | 0.78 W |
| Shipping Dimensions | 617 × 477 × 260 mm |
| Product Dimensions | 526.9 × 383.8 × 193.4 mm |
| Product Weight | 6.75 kg |
| Operating Humidity | 20%~80% RH |
| Operating Temperature | 0 °C - 40 °C |
| Touch Points | 10 Points Multi Touch |
| Touch Technology | TouchPro PCAP |
| Surface Protection | Anti-glare |
| Serial Port | RS232 × 1 |
| USB Ports | USB 2.0 Type A × 1 |
| Touch USB Ports | Touch-USB × 1 |
| Audio In | Audio In × 1 |
| VGAInput | VGA × 1 |
| Hdmi Input | HDMI × 1 |
| Speaker Output | 2 × 2W |
| Speaker Type | Built-in Speakers |
| Brightness | 225 cd/m² |
| Display Color | 8bit |
| Resolution | 1920 × 1080 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | Active matrix TFT LCD |
No datasheet available.
