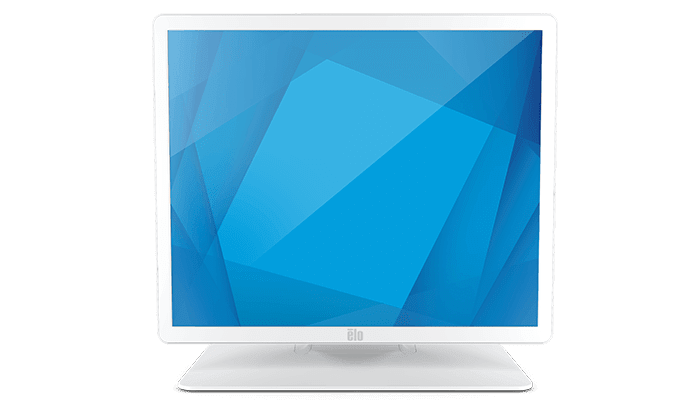

The ELO Touch 19" Medical Grade Touchscreen Monitor – Model 1903LM (SKU: E658394) is expertly engineered to meet the rigorous demands of healthcare environments. This advanced medical touchscreen monitor delivers outstanding performance and reliability, making it an ideal solution for hospitals, clinics, and laboratories. Featuring a crystal-clear 19-inch display with precise multi-touch capability, it ensures seamless operation for both staff and patients. The 1903LM is designed with medical compliance in mind, supporting infection control protocols with its antimicrobial and IP-rated enclosure. Its flexible mounting options and variety of connectivity ports enable easy integration into existing medical systems. With excellent image clarity and intuitive usability, this monitor enhances workflow efficiency in any healthcare setting. The ELO 1903LM is the go-to choice for professionals seeking a durable, high-quality, and hygienic touchscreen solution that meets strict medical standards.
Key Features
Medical Grade Certification - Fully compliant with healthcare safety and hygiene standards.
19-Inch Touch Display - Offers ample screen space and excellent visibility for medical applications.
Multi-Touch Technology - Supports advanced gestures for precise and responsive interaction.
Antimicrobial Surface - Inhibits the growth of bacteria and supports infection control protocols.
IP-Rated Enclosure - Protects against dust and liquid ingress for reliable use in clinical environments.
Flexible Mounting Options - Compatible with VESA mounts for wall, arm, or cart installations.
Diverse Connectivity - Includes HDMI, VGA, USB, and DisplayPort options for seamless integration.
Durable Construction - Built to withstand frequent cleaning and heavy daily usage.
Ergonomic Design - Slim profile and adjustable positioning for user comfort.
Energy Efficient - Low power consumption helps reduce operational costs.
Wide Compatibility - Works seamlessly with leading healthcare information systems and devices.
The ELO Touch 19" Medical Grade Touchscreen Monitor – Model 1903LM (SKU: E658394) is an industry-leading solution designed for demanding healthcare settings. With its medical-grade touchscreen, antimicrobial features, and superior durability, this monitor ensures safe and efficient operation in any clinical environment. Choose the 1903LM for reliable performance and exceptional hygiene compliance.
| Name | ELO Touch 19" Medical Grade Touchscreen Monitor – Model 1903LM (SKU: E658394) |
| Refresh Rate | 60 Hz |
| Screen Size | 19 inch |
| Warranty | 3 years |
| Included Cables | VGA cable, HDMI cable, Touch USB cable, Audio cable, Power cable (NA, EU), Power brick |
| Wall Mount | 100 × 100 mm (VESA) |
| Power Consumption | 16.36 W |
| Power Standby | 0.79 W |
| Shipping Dimensions | 527 × 482 × 260 mm |
| Product Dimensions | 397.65 × 429.60 × 193.40 mm |
| Product Weight | 6.3 kg |
| Operating Humidity | 20%~80% RH |
| Operating Temperature | 0 °C - 40 °C |
| Touch Points | 10 Points Multi Touch |
| Touch Technology | TouchPro PCAP |
| Touch Response Time | 14 ms |
| Surface Protection | Anti-glare |
| Serial Port | RS232 × 1 |
| USB Ports | USB 2.0 Type A × 1; Micro USB × 4 |
| Touch USB Ports | Touch-USB × 1 |
| VGAInput | VGA × 1 |
| Hdmi Input | HDMI × 1 |
| Speaker Output | 2 × 2W |
| Speaker Type | Built-in Speakers |
| Brightness | 225 cd/m² |
| Display Color | 8bit |
| Resolution | 1280 × 1024 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | Active matrix TFT LCD |
No datasheet available.
