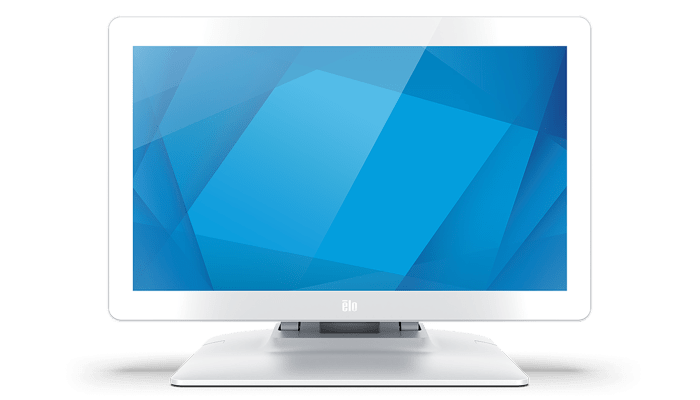

The ELO Touch 15" Medical Grade Touchscreen Monitor – Model 1502LM (SKU: E967064) is purpose-built for healthcare environments where performance, reliability, and hygiene are paramount. This advanced medical touchscreen monitor features a 15-inch display that delivers crisp, clear visuals, perfect for patient charts, imaging, and data entry. With its IP54-rated front panel and easy-to-clean surface, the 1502LM ensures infection control compliance. The monitor’s multi-touch capability supports intuitive operation, making it ideal for use in hospitals, clinics, and laboratories. Designed to seamlessly integrate with medical carts and workstations, the ELO 1502LM offers both durability and ergonomic comfort. Its antimicrobial coating and fanless design reduce contamination risks and minimize noise in sensitive areas. Connectivity is effortless with a range of input options including USB, VGA, and HDMI, ensuring compatibility with diverse medical equipment. Trust the ELO Touch medical grade monitor for consistent, dependable performance where it matters most.
Key Features
Medical Grade Certification - Meets stringent healthcare standards for safety and reliability in clinical settings.
15-Inch Touchscreen Display - Provides high-resolution visuals and responsive touch performance for accurate data input.
IP54-Rated Front Panel - Protects against dust and liquid ingress for enhanced infection control.
Antimicrobial Coating - Reduces the risk of cross-contamination on frequently touched surfaces.
Multiple Mounting Options - VESA compatibility enables flexible installation on carts, arms, or walls.
Fanless, Silent Operation - Minimizes noise, making it ideal for patient rooms and quiet environments.
Wide Connectivity - Equipped with HDMI, VGA, and USB ports for seamless integration with medical devices.
Durable Construction - Engineered for 24/7 use in demanding healthcare environments.
Multi-Touch Capability - Supports touch gestures for efficient workflow and user interaction.
Easy-to-Clean Surface - Designed for quick disinfection to meet hospital hygiene protocols.
Energy Efficient - Low power consumption helps reduce operating costs in medical facilities.
The ELO Touch 15" Medical Grade Touchscreen Monitor (Model 1502LM, SKU: E967064) is the perfect solution for any healthcare environment seeking a reliable and hygienic touch interface. Its medical grade construction, advanced touchscreen technology, and versatile connectivity make it an invaluable asset for hospitals, clinics, and laboratories.
| Name | ELO Touch 15" Medical Grade Touchscreen Monitor – Model 1502LM (SKU: E967064) |
| Screen Size | 15.6 inch |
| Warranty | 3 Years |
| Included Cables | HDMI cable, USB Cable (USB Type-A to Type-C), NA Power cable, EU Power cable |
| Wall Mount | 100 × 100 mm (VESA) |
| Power Consumption | 9.5 W |
| Power Standby | 0.2 W |
| Shipping Dimensions | 451 × 204 × 344 mm |
| Product Dimensions | 386.96 × 284.65 × 199.12 mm |
| Product Weight | 3.08 kg |
| Operating Humidity | 20%~80% RH |
| Operating Temperature | 0 °C - 40 °C |
| Touch Points | 10 Points Multi Touch |
| Touch Technology | Projected Capacitive Touch |
| Surface Protection | Anti-Glare Smooth Glass |
| USB Ports | USB Type-A to Type-C × 1 |
| Touch USB Ports | Micro-USB × 3 |
| Audio In | Audio In × 1 |
| Type C in | USB Type-C × 1 |
| VGAInput | VGA × 1 |
| Hdmi Input | HDMI × 1 |
| Speaker Output | 2 × 2W |
| Speaker Type | Built-in Speakers |
| Brightness | 225 cd/m² |
| Display Color | 8bit |
| Resolution | 1920 × 1080 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | Active matrix TFT LCD |
