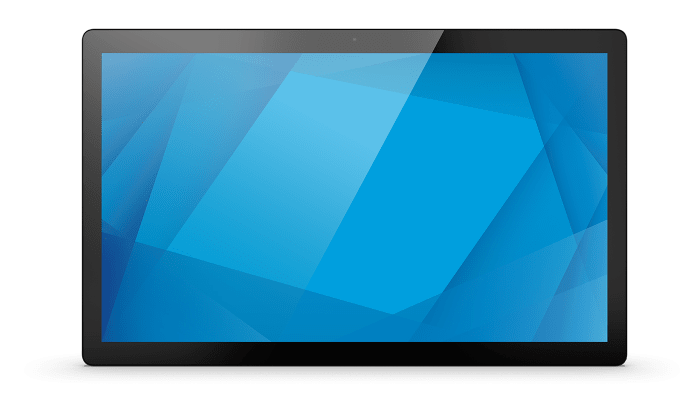

The ELO 22-inch I-Series 4 for Android Value Model is the ultimate solution for businesses seeking a modern and versatile interactive display. Powered by Android 10, this sleek touchscreen display offers seamless performance for point-of-sale, self-service, and interactive signage applications. Its 22-inch screen delivers vibrant visuals and responsive touch capabilities, ensuring an engaging user experience in retail, hospitality, and corporate environments. The ELO I-Series 4 includes robust connectivity options and a durable construction, making it ideal for high-traffic locations. Its black finish adds a professional touch to any setting. With its intuitive Android interface, you can quickly deploy custom applications for your business needs. Designed for reliability, this commercial-grade touchscreen is supported by ELO’s legacy of quality and innovation. Upgrade your workspace with the ELO 22-inch Android Touchscreen and experience the benefits of a fast, adaptable, and secure kiosk solution.
Key Features
22-Inch Full HD Display - Large, crisp visuals perfect for customer engagement and detailed content.
Android 10 Operating System - Secure, up-to-date, and compatible with a wide range of business apps.
Multi-Touch Technology - Responsive and accurate touch performance for smooth interactions.
Commercial-Grade Durability - Built to withstand high-traffic environments and extended use.
Sleek Black Finish - Modern aesthetics to complement any professional setting.
Flexible Mounting Options - Easily adaptable to kiosks, walls, or counters for diverse installations.
Robust Connectivity - Features multiple ports including USB, HDMI, and Ethernet for seamless integration.
Energy-Efficient Operation - Low power consumption for cost-effective performance.
Customizable User Interface - Personalize the display to match your business branding and workflow.
Easy Remote Management - Supports remote device monitoring and updates for streamlined maintenance.
Trusted ELO Quality - Backed by ELO’s reputation for reliability and customer support.
The ELO 22-inch I-Series 4 for Android Value Model is a cutting-edge interactive touchscreen display designed for dynamic business environments. With Android 10 OS, robust durability, and flexible installation options, it’s an exceptional solution for retail, hospitality, and corporate applications where performance and reliability matter most.
| Name | ELO 22-inch I-Series 4 for Android Value Model, Android 10, Black |
| Refresh Rate | 60 Hz |
| Screen Size | 22 inch |
| Built-in Camera | 8 MP |
| Warranty | 2 Years |
| Accessories | Quick Install Guide, Screws for cable cover door |
| Included Cables | NA Power Cable, EU Power Cable, Power Brick |
| Wall Mount | VESA 75 mm and 100 mm |
| Power Consumption | < 19.8 W (Standard), < 15.7 W (Value) |
| Power Standby | ≤ 0.4 W |
| Shipping Dimensions | 590 × 168 × 400 mm (Standard), 600 × 168 × 406 mm (Value) |
| Product Dimensions | 524.8 × 324.8 × 29.7 mm |
| Product Weight | 3.8 kg (Standard), 4.3 kg (Value) |
| Operating Humidity | 20%~80% RH |
| Operating Temperature | 0 °C to 40 °C |
| RAM | 4 GB |
| Storage | 64 GB / 32 GB |
| CPU | Qualcomm Snapdragon SDA660 (Standard), Rockchip RK3399 (Value) |
| OS Version | Android 10 |
| Touch Points | 10 Points Multi Touch |
| Touch Technology | Projected Capacitive |
| Ethernet (RJ45) | RJ45 (1000 Mbps Port) × 1 |
| Wi-Fi | 802.11a/b/g/n/ac |
| Bluetooth | Bluetooth 5.0 |
| SD Card Slot | Micro SD slot × 1 |
| USB Ports | USB 3.0 × 1 |
| Type C in | Type-C × 1 |
| Speaker Output | 2 × 0.8 W (Standard), 2 × 2 W (Value) |
| Speaker Type | Built-in Speakers |
| Brightness | 250 cd/m² |
| Display Color | 8bit |
| Resolution | 1920 × 1080 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | LED |
No datasheet available.
