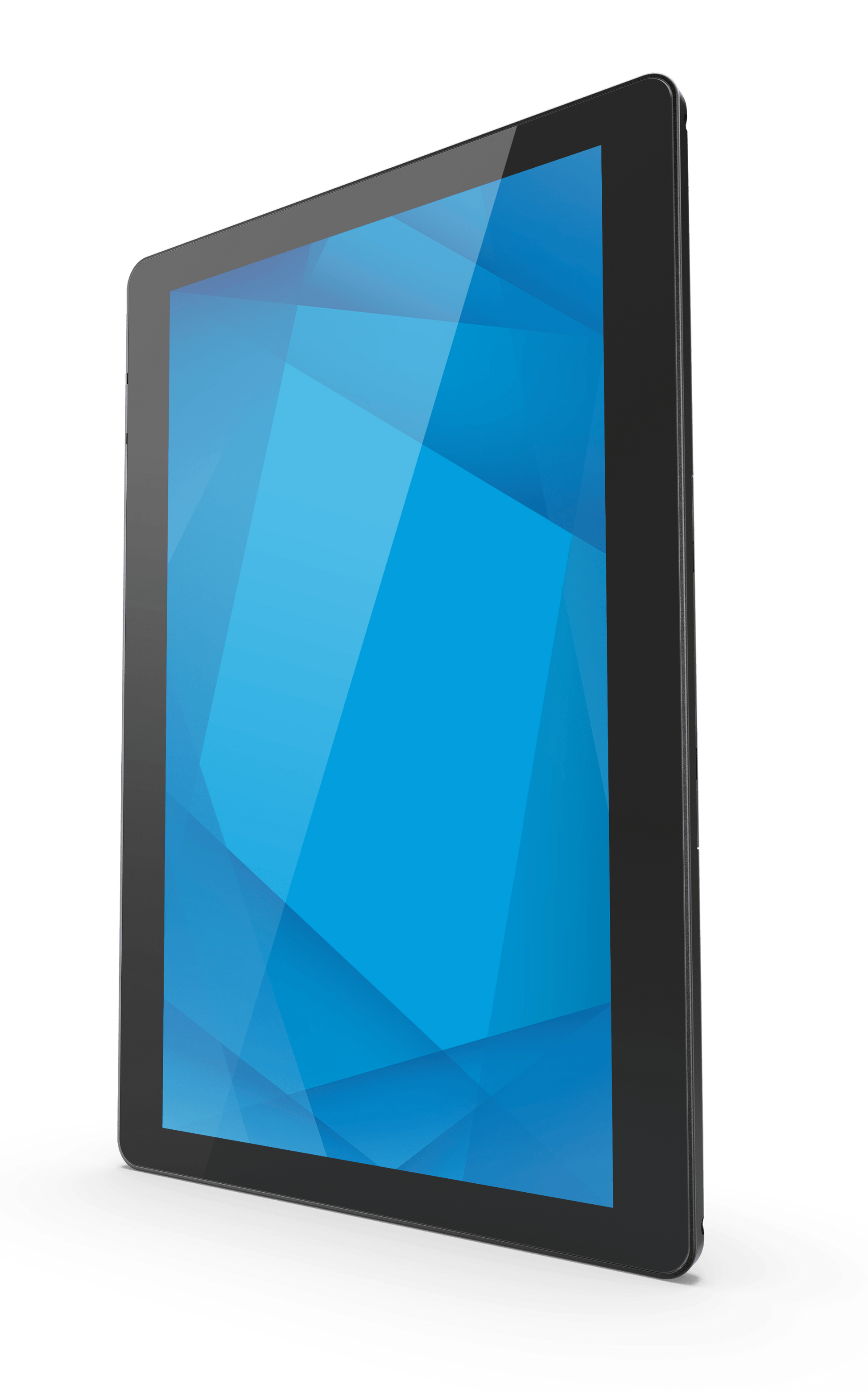

The ELO 22-inch I-Series 3 with Intel® i3 processor is a premium touchscreen computer designed to meet the needs of modern businesses and retail environments. Equipped with Windows 10, this all-in-one terminal delivers reliable performance with its 8GB RAM and speedy 128GB SSD, ensuring smooth multitasking and rapid data access. The large 22-inch display features anti-glare technology, providing clear visuals in any lighting condition while reducing eye strain. The included sturdy stand offers flexible placement on counters or desks, making it perfect for point-of-sale systems, interactive kiosks, and customer-facing solutions. Its sleek design integrates seamlessly into any professional environment, while robust hardware ensures long-lasting operation. With advanced connectivity options and robust construction, the ELO 22-inch I-Series 3 is tailored for those seeking reliability, performance, and exceptional user experience in demanding commercial settings.
Key Features
22-inch Full HD Display - Delivers crisp, vibrant visuals for enhanced user interaction and clarity.
Intel® i3 Processor - Provides powerful and efficient performance for multitasking applications.
Windows 10 Operating System - Ensures compatibility with a wide range of business software and applications.
8GB RAM - Supports seamless multitasking and improved workflow efficiency.
128GB SSD Storage - Offers fast boot times and quick data retrieval for busy environments.
Anti-glare Screen - Reduces reflections and glare, making it ideal for brightly lit spaces.
Included Stand - Provides stability and optimal viewing angles for countertop or desktop use.
Touchscreen Interface - Enables intuitive, user-friendly operation for customers and employees.
Sleek, Modern Design - Blends effortlessly into any retail or hospitality setting.
Robust Connectivity Options - Supports multiple peripherals and network configurations.
Commercial-Grade Durability - Built to withstand rigorous daily use in demanding environments.
The ELO 22-inch I-Series 3 (SKU: E707378) is the ideal solution for businesses seeking a reliable touchscreen terminal with advanced performance features. Its combination of speed, durability, and user-friendly design makes it perfect for retail, hospitality, and other commercial applications, ensuring your operations run smoothly day after day.
| Name | ELO 22-inch I-Series 3 with Intel® i3, Win10, 8GB RAM, 128GB SSD, Anti-glare, With Stand |
| Refresh Rate | 60 Hz |
| Screen Size | 22 inch |
| Warranty | 3-year |
| Accessories | Cable tie, VESA mounting screw, Quick Installation Guide (QIG), Power Adapter, Power Cord |
| Included Cables | North America Power Cord, European Power Cord, Power Adapter – 180W, Cable RJ-50 to DB-9, Quick Installation Guide (QIG), Cable tie, VESA mounting screw |
| Wall Mount | 100 × 100 mm (VESA) |
| Power Consumption | 39 W (Celeron), 51 W (i3), 57 W (i5), 56 W (i7) |
| Power Standby | < 0.5 W |
| Shipping Dimensions | 643 × 214 × 439 mm |
| Product Dimensions | 525.8 × 321.1 × 39.6 mm |
| Product Weight | 6 kg |
| Operating Humidity | 20%~80% |
| Operating Temperature | 0 °C to 35 °C |
| RAM | 8 GB / 16 GB |
| Storage | 128 GB / 256 GB |
| NPU | Hailo 8 AI Module (optional on select SKUs) |
| GPU | Intel UHD Graphics / Intel Iris Xe Graphics |
| CPU | Intel Celeron 7305L / Core i3-1215UL / Core i5-1245UL / Core i7-1265UL |
| Touch Points | 10 Points Multi Touch |
| Touch Technology | PCAP |
| Surface Protection | Anti-glare |
| Ethernet (RJ45) | RJ45 (1000 Mbps Port) × 1 |
| Wi-Fi | Wi-Fi 6, 2.4G/5G/6G |
| Bluetooth | Bluetooth 5.3 |
| Serial Port | RJ50 Powered Serial Port × 1 |
| USB Ports | USB 3.0 × 4 |
| Audio Out | Audio Port (3.5 mm headset jack) × 1 |
| Type C Functionality | Power up to 27W, USB 3.0, Display Port, Additional Video Out |
| Type C in | USB-C × 1 |
| Speaker Output | 2 × 2 W |
| Speaker Type | Built-in Speakers |
| Brightness | 250 cd/m² |
| Display Color | 8bit |
| Resolution | 1920 × 1080 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | LED |
No datasheet available.
