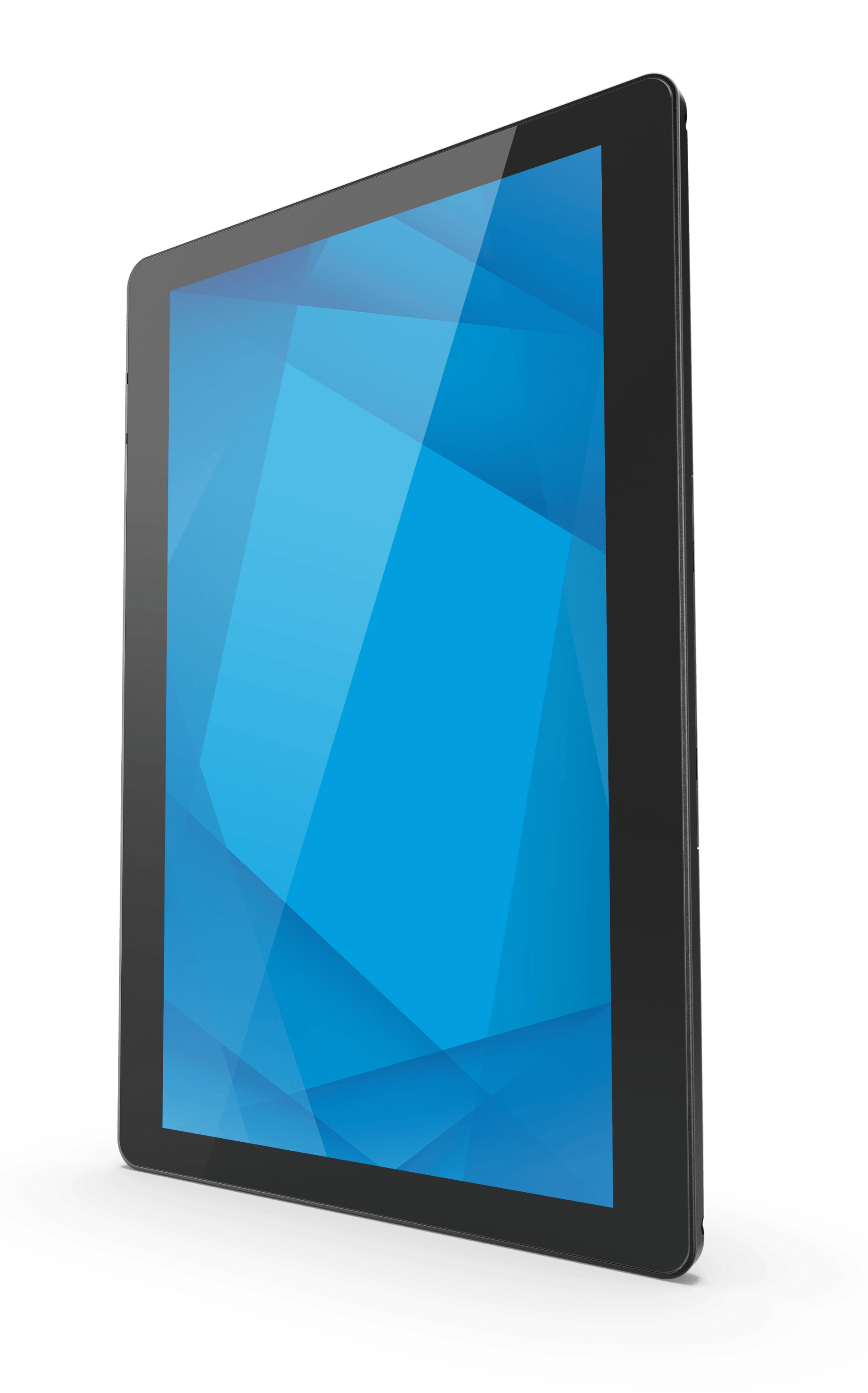

Experience exceptional performance and versatility with the ELO 22-inch I-Series 3 powered by an advanced Intel® i3 processor. Designed for both professional and retail environments, this interactive touch computer features a stunning 22-inch display with anti-glare technology, making it ideal for high-traffic areas. With 8GB RAM and a fast 128GB SSD, you are assured of smooth multitasking and rapid data access. This model comes without an operating system, providing flexibility for custom installations to suit your business needs. The included stand ensures stable placement and ease of use, while the modern design enhances any space. Whether used for point-of-sale, self-service kiosks, or interactive information points, the ELO I-Series delivers reliable, high-performance computing. Upgrade your business with this robust and adaptable touchscreen solution that combines durability, speed, and user-friendly features for seamless daily operations.
Key Features
22-inch Full HD Display - Offers crisp, clear visuals for optimal viewing and interaction.
Intel® i3 Processor - Delivers efficient and responsive performance for demanding applications.
Anti-glare Screen - Reduces reflections and eye strain, perfect for brightly lit environments.
8GB RAM - Ensures smooth multitasking and fast application switching.
128GB SSD Storage - Provides rapid boot times and quick data access.
No Operating System - Allows full customization for your preferred software environment.
Included Stand - Guarantees stability and convenient placement on any surface.
Durable Construction - Built to withstand continuous use in commercial settings.
Versatile Connectivity - Multiple ports to support a range of peripherals and accessories.
Sleek, Modern Design - Enhances the appearance of any workspace or retail area.
Energy Efficient - Engineered for low power consumption without compromising performance.
The ELO 22-inch I-Series 3 with Intel® i3 processor, anti-glare screen, and flexible stand is the perfect solution for retail, hospitality, and business environments seeking reliable touchscreen technology. Customize your system with the operating system of your choice and enjoy enhanced performance, durability, and style in one streamlined device.
| Name | ELO 22-inch I-Series 3 with Intel® i3, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand |
| Refresh Rate | 60 Hz |
| Screen Size | 22 inch |
| Warranty | 3 Years |
| Included Cables | North America Power Cord, European Power Cord, Power Adapter – 180W, Cable RJ-50 to DB-9, Quick Installation Guide (QIG), Cable tie, VESA mounting screw |
| Wall Mount | 100 × 100 mm (VESA) |
| Power Consumption | 39 W (Celeron) / 51 W (i3) / 57 W (i5) / 56 W (i7) |
| Power Standby | < 0.5 W |
| Shipping Dimensions | 643 × 214 × 439 mm |
| Product Dimensions | 525.8 × 321.1 × 39.6 mm |
| Product Weight | 6 kg |
| Operating Humidity | 20%~80% RH |
| Operating Temperature | 0 °C to 35 °C |
| RAM | 8 GB / 16 GB / 32 GB |
| Storage | 128 GB / 256 GB / 1 TB |
| NPU | Hailo 8 AI Module (on select i7 SKUs) |
| GPU | Intel UHD Graphics / Intel Iris Xe Graphics |
| CPU | Intel Celeron Processor 7305L / Intel Core i3-1215UL / Intel Core i5-1245UL / Intel Core i7-1265UL |
| Touch Points | 10 Points Multi Touch |
| Touch Technology | PCAP |
| Surface Protection | Anti-glare |
| Ethernet (RJ45) | RJ45 (1000 Mbps Port) × 1 |
| Wi-Fi | Wi-Fi 6, 2.4G/5G/6G |
| Bluetooth | Bluetooth 5.3 |
| Serial Port | RJ50 Powered Serial Port × 1 |
| USB Ports | USB 3.0 × 4 |
| Audio Out | Audio Port (3.5 mm headset jack) × 1 |
| Type C Functionality | Power up to 27W, USB 3.0, Display Port, Additional Video Out |
| Type C in | USB-C × 1 |
| Speaker Output | 2 × 2 W |
| Speaker Type | Built-in Speakers |
| Brightness | 250 cd/m² |
| Display Color | 8bit |
| Resolution | 1920 × 1080 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | LED |
