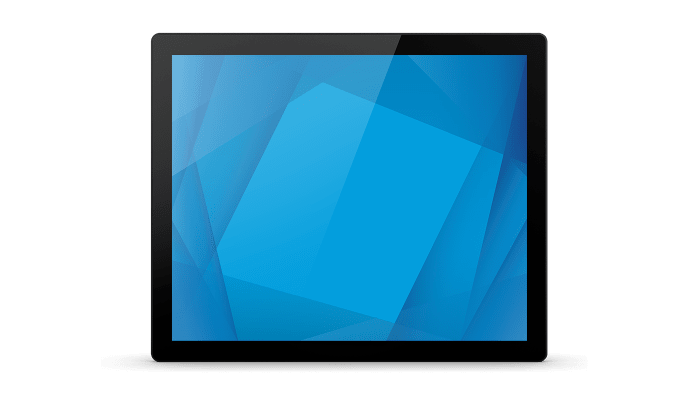

Experience seamless interaction and advanced performance with the ELO 1990L 19" Open Frame Touchscreen, featuring cutting-edge TouchPro PCAP technology and a sleek zero bezel design. Designed for worldwide compatibility, this touchscreen monitor offers exceptional clarity and responsiveness for a wide variety of commercial and industrial applications. Its open frame structure allows for flexible integration into kiosks, gaming machines, and interactive displays, making it perfect for retail, self-service, and hospitality environments. The 19-inch display delivers vibrant visuals, while the robust construction ensures reliable operation in demanding settings. With multi-touch capability, advanced anti-glare properties, and durable components, the ELO 1990L is engineered to provide a superior user experience and long-lasting performance. Choose the ELO 1990L for your next project and benefit from a world-class touchscreen solution that meets global standards for quality and innovation.
Key Features
19-Inch Display - Offers a generous viewing area for enhanced user interaction and visibility.
TouchPro PCAP Technology - Delivers highly responsive and accurate multi-touch performance.
Zero Bezel Design - Provides a modern, seamless edge-to-edge look for easy cleaning and integration.
Worldwide Compatibility - Engineered for global voltage and mounting standards.
Open Frame Construction - Ideal for custom enclosures, kiosks, and embedded applications.
Durable Build - Designed to withstand continuous use in commercial and industrial environments.
Anti-Glare Surface - Enhances visibility and reduces reflections under bright lighting.
Multi-Touch Capability - Supports up to 10 simultaneous touch points for a dynamic user experience.
Flexible Mounting Options - VESA and side mounting for easy installation and integration.
Energy Efficient - Low power consumption for reduced operating costs and environmental impact.
Reliable Brand - Manufactured by ELO, a trusted leader in touchscreen technology worldwide.
The ELO 1990L 19" Open Frame Touchscreen with TouchPro PCAP Zero Bezel technology is the ultimate solution for businesses seeking a robust, versatile, and globally compatible interactive display. Designed for demanding commercial applications, its open frame design and advanced touch capabilities ensure seamless integration and exceptional user satisfaction.
| Name | ELO 1990L 19" Open Frame Touchscreen TouchPro PCAP Zero Bezel (Worldwide) |
| Refresh Rate | 60 Hz |
| Screen Size | 19 inch |
| Warranty | 3 Years |
| Accessories | OSD Remote, Quick Install Guide, EEI Label, Japan Class-B TM info sheet, Flush Mount Brackets w/Screws, “L” (Side Mount) Brackets w/Screws |
| Included Cables | HDMI Cable, VGA Cable, Touch USB Cable |
| Wall Mount | 100 × 100 mm (VESA) |
| Power Consumption | 11.78 W |
| Power Standby | ≤ 0.5 W |
| Shipping Dimensions | 526 × 450 × 174 mm |
| Product Dimensions | 414.7 × 342.7 × 50 mm |
| Product Weight | 4.6 kg |
| Operating Humidity | 20%~80% RH |
| Operating Temperature | 0 °C to 40 °C |
| Touch Points | 10 Points Multi Touch |
| Touch Technology | PCAP / SAW |
| Touch Response Time | 5 ms |
| Serial Port | RS232 × 1 |
| Touch USB Ports | Touch-USB × 1 |
| VGAInput | VGA × 1 |
| Hdmi Input | HDMI In × 1 |
| Brightness | 225 cd/m² |
| Display Color | 8bit |
| Resolution | 1280 × 1024 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | LED |
No datasheet available.
