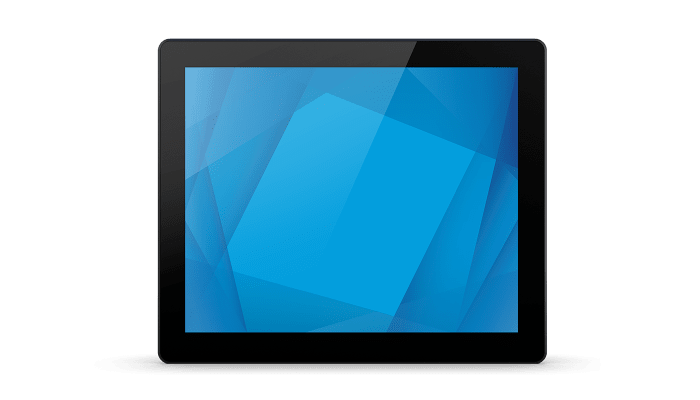

Experience seamless interaction and reliable performance with the ELO 1790L 17" Open Frame Touchscreen IntelliTouch – a leading choice for businesses seeking high-quality touchscreen monitors. Designed for global compatibility, this advanced open frame display is engineered with IntelliTouch surface acoustic wave technology, ensuring precise and responsive touch input. Its rugged construction makes it ideal for kiosk, retail, and industrial applications, offering both durability and modern aesthetics. The 17-inch screen provides bright, clear visuals with wide viewing angles, perfect for interactive kiosks or public terminals. With worldwide support and flexible mounting options, the ELO 1790L simplifies integration into any environment. Enhance your business operations with this global-ready, high-performance interactive display solution that supports both single and multi-touch gestures, delivering an exceptional user experience every time.
Key Features
IntelliTouch Surface Acoustic Wave Technology - Provides superior touch accuracy and reliability for consistent user interaction.
17" Open Frame Design - Easily integrates into kiosks, gaming machines, and industrial enclosures.
Worldwide Compatibility - Built for global deployment with multi-voltage support and international certifications.
Durable Construction - Robust build ensures long-lasting performance in high-traffic environments.
Bright, Clear Display - High-resolution screen with wide viewing angles enhances visibility and user engagement.
Flexible Mounting Options - Supports various mounting configurations for easy installation.
Responsive Touch Input - Accurate single and multi-touch gestures for interactive applications.
Energy Efficient - Low power consumption for cost-effective operation.
Scratch-Resistant Glass - Protects against damage and maintains screen clarity over time.
Plug-and-Play Connectivity - Simplifies setup with USB and serial interface options.
Reliable Brand Support - Backed by ELO’s global service and technical support network.
The ELO 1790L 17" Open Frame Touchscreen IntelliTouch (SKU: E326942) offers a robust, responsive solution for demanding interactive display needs. Perfect for retail, kiosk, and industrial installations, this touchscreen monitor is engineered for global use and seamless integration, making it a trusted choice for businesses worldwide.
| Name | ELO 1790L 17" Open Frame Touchscreen IntelliTouch (Worldwide) |
| Refresh Rate | 60 Hz |
| Screen Size | 17 inch |
| Warranty | 3 Years |
| Accessories | OSD Remote, Quick Install Guide, EEI Label, Flush Mount Brackets w/Screws |
| Included Cables | HDMI Cable, VGA Cable, Touch USB Cable |
| Wall Mount | 100 × 100 mm (VESA) |
| Power Consumption | 9.90 W |
| Power Standby | 0.5 W |
| Shipping Dimensions | 476 × 418 × 183 mm |
| Product Dimensions | 368.4 × 306.4 × 47.5 mm |
| Product Weight | 3.6 kg |
| Operating Humidity | 20%~80% RH |
| Operating Temperature | 0 °C to 40 °C |
| Touch Points | 10 Points Multi Touch |
| Touch Technology | PCAP / SAW / Resistive |
| Touch Response Time | 5 ms |
| Surface Protection | Anti-Glare |
| Serial Port | RS232 × 1 |
| Touch USB Ports | Touch-USB × 1 |
| VGAInput | VGA × 1 |
| Hdmi Input | HDMI In × 1 |
| Brightness | 250 cd/m² |
| Display Color | 8bit |
| Resolution | 1280 × 1024 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | LED |
No datasheet available.
