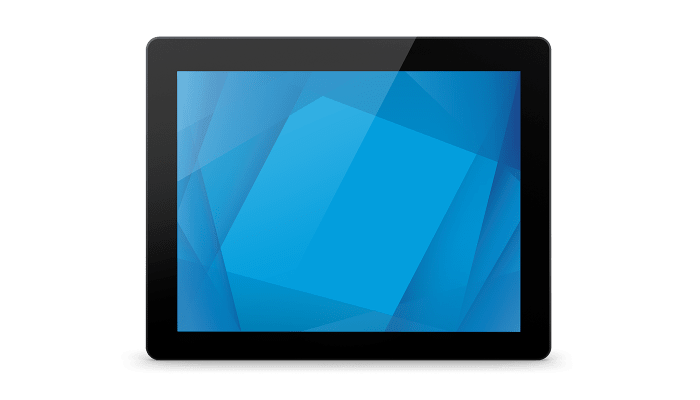

The ELO 1590L 15" Open Frame Touchscreen is an ideal solution for businesses seeking reliable and versatile interactive display technology. Designed with TouchPro PCAP technology and a robust bezel, this open frame touchscreen offers fast, accurate, and responsive touch performance. The 15-inch screen size makes it perfect for point-of-sale, kiosk, gaming, and industrial automation applications. Its open frame design ensures seamless integration into both new and existing enclosures, making it a favorite among system integrators and OEMs. The ELO 1590L is engineered for worldwide compatibility, supporting a range of input connectors and mounting options for flexible installation. With its durable construction, LED backlighting, and energy-efficient operation, this touchscreen delivers an outstanding user experience and a long operational life. Whether you need a high-performance display for retail, hospitality, or self-service environments, the ELO 1590L ensures exceptional clarity, durability, and touch accuracy.
Key Features
15" Touch Display - Optimal size for a wide range of commercial and industrial applications.
TouchPro PCAP Technology - Delivers highly responsive and accurate 10-touch capability.
Open Frame Design - Easily integrates into kiosks, gaming machines, and information terminals.
Bezel Construction - Provides additional protection and a sleek, finished appearance.
Worldwide Compatibility - Supports global power standards and multiple input options.
Energy-Efficient LED Backlighting - Reduces power consumption while offering vibrant display quality.
Flexible Mounting Options - Includes VESA and side mounting for versatile installation.
Durable Build Quality - Built to withstand continuous public use and harsh environments.
High Clarity Display - Ensures sharp images and excellent visibility even in bright settings.
Multiple Connectivity - Features VGA, HDMI, and USB interfaces for easy integration.
Long Operational Life - Designed for 24/7 operation with minimal maintenance requirements.
The ELO 1590L 15" Open Frame Touchscreen with TouchPro PCAP and a protective bezel is a trusted choice for demanding interactive applications. Its advanced touch technology, robust design, and worldwide compatibility make it an excellent fit for kiosk installations, self-service systems, and retail environments seeking reliability and performance.
| Name | ELO 1590L 15" Open Frame Touchscreen TouchPro PCAP with Bezel (Worldwide) |
| Refresh Rate | 60 Hz |
| Screen Size | 15 inch |
| Warranty | 3 Years |
| Accessories | OSD Remote, Quick Install Guide, EEI Label, Flush Mount Brackets w/Screws |
| Included Cables | HDMI Cable, VGA Cable, Touch USB Cable |
| Wall Mount | 100 × 75 mm (VESA) |
| Power Consumption | 12.5 W |
| Power Standby | ≤ 0.5 W |
| Shipping Dimensions | 434 × 375 × 175 mm |
| Product Dimensions | 358 × 284.9 × 35.6 mm |
| Product Weight | 2.9 kg |
| Operating Humidity | 20%~80% |
| Operating Temperature | 0 °C to 40 °C |
| Touch Points | 10 Points Multi Touch |
| Touch Technology | PCAP / SAW / Resistive |
| Touch Response Time | 23 ms |
| Surface Protection | Antiglare |
| Serial Port | RS232 × 1 |
| Touch USB Ports | Touch-USB × 1 |
| VGAInput | VGA × 1 |
| Hdmi Input | HDMI In × 1 |
| Brightness | 300 cd/m² |
| Display Color | 8bit |
| Resolution | 1024 × 768 |
| Viewing Angle | 160° (H) / 150° (V) |
| Backlight | LED |
