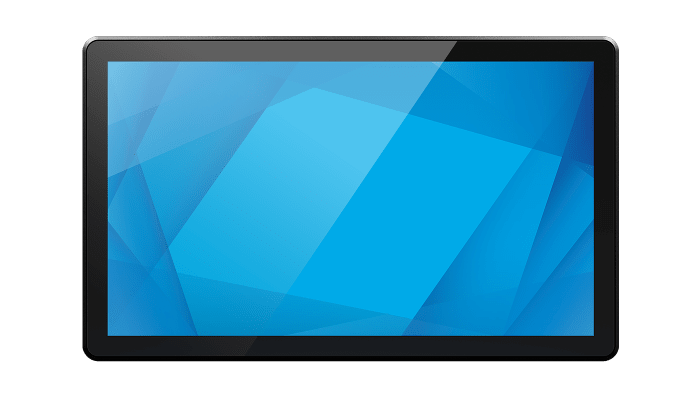

Experience unparalleled performance and durability with the ELO 1099L 10" Outdoor Open Frame Touchscreen, SKU E354792. Designed to thrive in challenging environments, this advanced outdoor touchscreen display offers exceptional sunlight readability and reliable weather resistance. Its rugged construction ensures long-lasting operation, making it ideal for kiosks, ATMs, and industrial applications. The open frame design allows seamless integration into custom enclosures, while the projected capacitive touch technology delivers smooth and accurate interactivity. With enhanced energy efficiency and a compact 10-inch form factor, this interactive monitor is the perfect solution for businesses seeking dependable outdoor digital signage. Elevate your user experience with a display engineered for clarity, precision, and resilience in any weather conditions.
Key Features
10-Inch Display - Compact size ideal for kiosks, ticketing, and outdoor terminals.
Outdoor-Ready - Engineered for direct sunlight and harsh weather exposure.
Open Frame Architecture - Easily integrates into custom enclosures or retrofit projects.
Projected Capacitive Touch - Offers responsive and accurate multi-touch input.
Weather Resistant - Built to withstand rain, dust, and extreme temperatures.
High Brightness Screen - Ensures vivid visuals even under direct sunlight.
Energy Efficient - Designed for low power consumption and extended operation.
Durable Construction - Robust materials provide long-term reliability outdoors.
Flexible Mounting Options - Supports multiple installation configurations.
Wide Operating Temperature - Functions smoothly in both hot and cold environments.
Vandal Resistant Glass - Protects against impact and tampering.
The ELO 1099L 10" Outdoor Open Frame Touchscreen (SKU E354792) is the ultimate solution for businesses seeking reliable outdoor touchscreen technology. Its rugged design, high brightness, and seamless integration capabilities make it perfect for a wide range of commercial and industrial applications. Invest in this advanced interactive display for dependable performance, no matter the environment.
| Name | ELO 1099L 10" Outdoor Open Frame Touchscreen |
| Refresh Rate | 60 Hz |
| Screen Size | 10 inch |
| Warranty | 2 Years |
| Sensors | Ambient light sensor, Thermal sensor |
| Accessories | OSD Remote, Flush Mount Brackets with screws, QIG, EEI Label, Japan Class-B TM info sheet |
| Included Cables | HDMI Cable, VGA Cable, Touch USB Cable |
| Wall Mount | 75 × 75 mm (VESA) |
| Power Consumption | 23 W |
| Power Standby | 1.5 W |
| Shipping Dimensions | 345 × 278 × 175 mm |
| Product Dimensions | 256 × 176 × 41 mm |
| Product Weight | 1.67 kg |
| Operating Humidity | 10%~90% RH |
| Operating Temperature | '-20 °C to 60 °C |
| Ambient Light Sensor | Yes |
| Touch Points | 5 Points Multi Touch |
| Touch Technology | PCAP |
| Touch Response Time | 25 ms |
| Surface Protection | Anti-Glare Smooth Glass |
| Touch USB Ports | Touch-USB 2.0 × 1 |
| VGAInput | VGA × 1 |
| Hdmi Input | HDMI In (HDMI 1.3) × 1 |
| Brightness | 1000 cd/m² |
| Display Color | 8bit |
| Resolution | 1280 × 800 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | TFT LCD |
